Maximize your workspace with a compact commercial door operator that doesn’t compromise on power. Its space-saving design frees up valuable overhead space, making it perfect for areas with limited clearance.

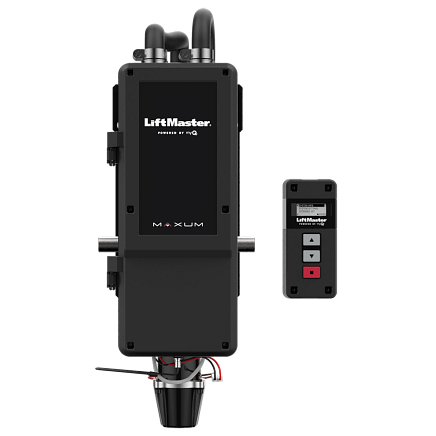

LiftMaster Maxum JDC DC Jackshaft
Buy Today
Contact us today for a free estimate
Have questions?
Let’s talk about it. 817.500.5988
Maximize your workspace with a compact commercial door operator that doesn’t compromise on power. Its space-saving design frees up valuable overhead space, making it perfect for areas with limited clearance.
Features
DISCOVER IF THIS OPENER HAS THE FEATURES YOU'RE LOOKING FOR
Connectivity
Equipped with Wi-Fi® to connect to myQ® Facility for enhanced door visibility and control without additional accessories.
Power
Features a high-efficiency motor and gearbox, ensuring powerful and reliable operation for both sectional and rolling doors.
Warranty
Comes with a 2-year commercial warranty, offering peace of mind and reliability in its performance.
Safety and Security
Includes Security+ 2.0 on-board radio receiver, managing up to 90 controllers for superior security.
Specifications
OPENER DETAILS
120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer accessory. Includes a DC45AH battery backup kit for continuous operation during power outages
No camera or video capabilities are included with this model
Easy connection to myQ Facility for remote monitoring and control
Compatible with RGL-CTL, a Hi-Intensity Red/Green Traffic Light
Includes advanced security features like Security+ 2.0
Soft-start and soft-stop functions enhance the quiet operation and extend hardware life
Operates at an average speed of 12 inches per second for sectional doors and 8-9 inches per second for rolling steel doors
The new design is 30 lbs lighter than previous models, aiding easier installation and handling
9.7” W x 21.7” H x 12.1” D
LiftMaster Maxum JDC DC Jackshaft Questions
Learn more
What are the power requirements for the LiftMaster Maxum JDC DC Jackshaft Commercial Door Operator?
The operator can be powered by 120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac 3PH (via transformer); 600Vac 3PH, ensuring flexibility in electrical setups across different installations.
Does the LiftMaster Maxum JDC DC Jackshaft have a battery backup feature?
Yes, there is an optional battery backup feature available that ensures continuous operation even during power outages, providing safety and convenience.
What are the safety features of the LiftMaster Maxum JDC DC Jackshaft Commercial Door Operator?
The operator includes monitored entrapment protection inputs and is UL® listed, ensuring compliance with safety standards. It also offers advanced diagnostics and troubleshooting capabilities to maintain secure and reliable operation.
